CUPLOCK SCAFFOLD SYSTEM01-LINYI ZHANCHUANG IMP AND EXP CO., LTD

CUPLOCK SCAFFOLD SYSTEM01

Cuplock Scaffold System	Standard Q345 tube 48.3*3.25	Procedure	Size	Weight(kg)	Surface	Certificate
		1.Cutting 2.Drilling 3.Plating cutting 4.Forming 5.Welding 6.Remove welding slag 7.Galvnize 8.Surface finish 9.Assembling 10.Packing 11.Logistics	0.5m	2.96	HDG	SGS ISO EN
			1.0m	5.33	HDG	SGS ISO EN
			1.5m	7.73	HDG	SGS ISO EN
			2.0m	10.06	HDG	SGS ISO EN
			2.5m	12.42	HDG	SGS ISO EN
			3.0m	14.78	HDG	SGS ISO EN
	Ledger Q235 tube 48.3*3.25		0.73m	3.81	HDG	SGS ISO EN
			1.09m	4.93	HDG	SGS ISO EN
			1.40m	6.44	HDG	SGS ISO EN
			2.07m	8.71	HDG	SGS ISO EN
			2.57m	10.64	HDG	SGS ISO EN
			3.07m	12.41	HDG	SGS ISO EN
	Brace Q235 tube 48.3*2.5		1.5*2m	9.04	HDG	SGS ISO EN
			2.0*2m	10.05	HDG	SGS ISO EN
			2.5*2m	11.42	HDG	SGS ISO EN
			3.0*2m	12.13	HDG	SGS ISO EN
	Bracket Q345 tube 48.3*3.2		0.35m	4.5	HDG	SGS ISO EN
			0.75m	6.7	HDG	SGS ISO EN
			1.1m	9.9	HDG	SGS ISO EN
	Plank Q235 1.5mm 1.8mm		0.73m	5.1	HDG	SGS ISO EN
			1.09m	6.9	HDG	SGS ISO EN
			1.4m	8.85	HDG	SGS ISO EN
			2.07m	12.11	HDG	SGS ISO EN
			2.57m	15.02	HDG	SGS ISO EN
			3.07m	17.69	HDG	SGS ISO EN
	base collar		0.16m	1.7	HDG	SGS ISO EN
	base collar		0.2m	2.1	HDG	SGS ISO EN
	Toe board wood 15*1.5cm		0.73m	2.16	anti-fire	ISO EN
			1.09m	2.98	anti-fire	ISO EN
			1.57m	4.12	anti-fire	ISO EN
			2.07m	5.75	anti-fire	ISO EN
			2.57m	6.88	anti-fire	ISO EN
			3.07m	7.98	anti-fire	ISO EN

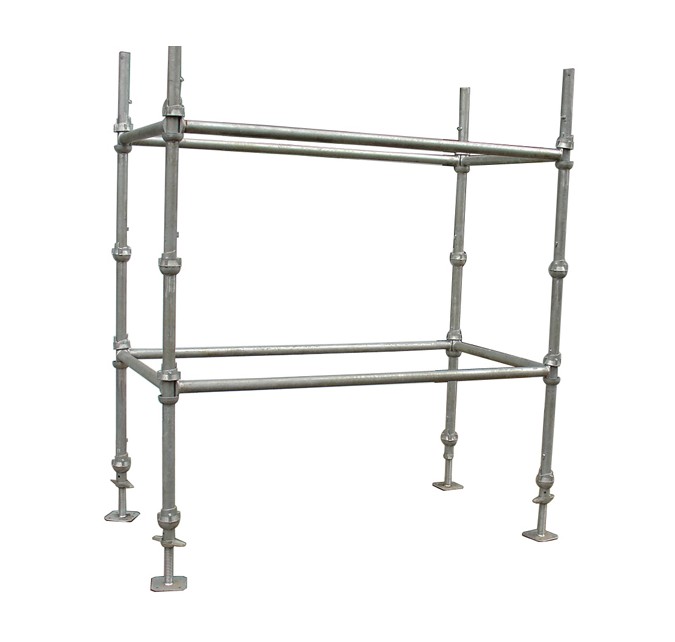

Cuplock Scaffold System
1. Material: Q345
2. Size: Standard size
3. Surface treatment: HDG/Galvanized/Painted/
4. Standard: EN74/OSHA
5. The parts of the cuplock system: Vertical, adjustable jack base, ledger, diagonal brace, bracket
6. Features: Forged (also can produce as your demands)
7. Types of scaffolding: Cuplock scaffolding, Ringlock scaffolding, frame system
8. Main market: America, Europe, Australia Africa, Asia and mideast
9. Quality: Durable, stable, skid-proof, antirust, easy to assemble & dismantle
10. Packaging: Woven bags with pallets or as your requierments
11. OEM service is available

Cuplock Scaffold System
(1) Easy assembly, time and labor saving.
(2) High load-carrying capacity.
(3) Adaptable to various construction projects.
(4) All elements safely connected
(5)Highly durable
